6900
Original price was: €3.80.€1.90Η τρέχουσα τιμή είναι: €1.90.
Σχετικά προϊόντα
Dell Inspiron 1545 USB board
Ελληνικό Πληκτρολόγιο για Laptop HP 455264-171 455264-201 455264-251 455264-261 455264-A41 455264-DJ1 456624-001 456624-031 456624-061 456624-131 456624-DJ1 490267-161 6027B0022522 6037B0022501 6037B0022506 6037B0
LEFT TO RIGHT FLEX EXTENSION FOR 15,6″

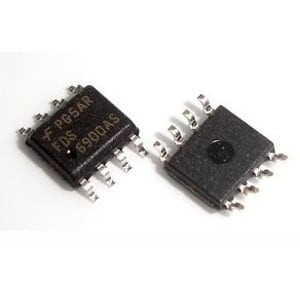

Dual N-Ch PowerTrench® SyncFET™ 6900ASMOSFET1 (Switch Q1): Optimized for low switching losses Low Gate Charge (11nC typical)VDS=30VID=6.9A @ VGS=10VMOSFET2 (Switch Q2): Optimized to minimize conduction losses icludes SyncFET Schottky body diodeVDS=30VID=8.2A @ VGS=10VThe FDS6900AS is designed to replace two single SO- 8 MOSFETs and Schottky diode in synchronous DC:DC power supplies that provide various peripheral voltages for notebook computers and other battery powered electronic devices. FDS6900AS contains two unique 30V, N-channel, logic level, PowerTrench MOSFETs designed to maximize power conversion efficiency. The high-side switch (Q1) is designed with specific emphasis on reducing switching losses while the lowside switch (Q2) is optimized to reduce conduction losses. Q2 also includes an integrated Schottky diode using Fairchild’s monolithic SyncFET technology.
Προσδιορισμός: 6900
|
