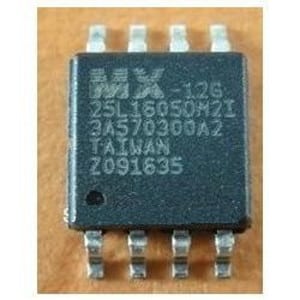

MACRONIX 25L16050M2I
Original price was: €2.90.€1.90Η τρέχουσα τιμή είναι: €1.90.
MX25L1605A16M-BIT [x 1] CMOS SERIAL FLASHThe MX25L1605A is a CMOS 16,777,216 bit serial Flash memory, which is configured as 2,097,152 x 8 internally. The MX25L1605A feature a serial peripheral interface and software protocol allowing operation on a simple 3-wire bus. The three bus signals are a clock input (SCLK), a serial datainput (SI), and a serial data output (SO). SPI access to the device is enabled by CS#input.The MX25L1605A provide sequential read operation on whole chip.After program/erase command is issued, auto program/erase algorithms which program/erase and verify the specified page or byte/sector/block locations will be executed. Program command is executed on page (256 bytes) basis, and erase command is executes on chip or sector (4K-bytes) or block (64K-bytes).To provide user with ease of interface, a status register is included to indicate the status on the chip. The status read command can be issued to detect completion status of program or erase operation via WIP bit.When the device is not in operation and CS# is high, it is put in standby mode and draws less than 50μA DC current.The MX25L1605A utilize MXICS’s proprietary memory cell, which reliably stores memory contents even after 100,000 program and erase cycles.
Προσδιορισμός: MACRONIX 25L16050M2I
|
Original price was: €2.90.€1.90Η τρέχουσα τιμή είναι: €1.90.
